Solar energy system for door and gate automation. The solar energy system support with optional wifi module
linked through the "F-linX" app.

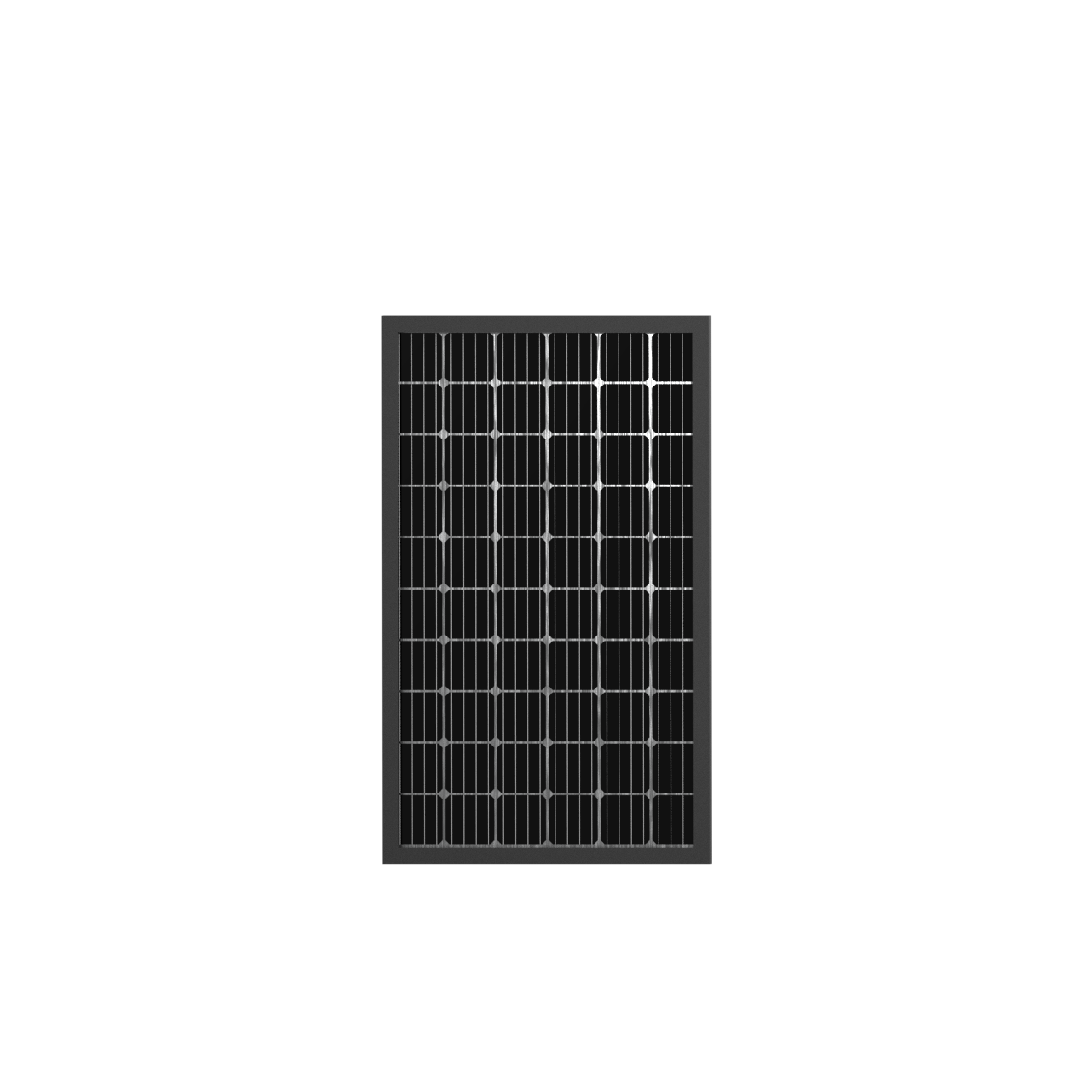

Solar Panel:
Short circuit current (Isc): 1.75A,
Maximum power voltage (Vmp): 24V,
Maximum power current (Imp): 1.67A,
Open circuit voltage (Voc): 28.3V,
Dimension: 670*410*25mm,
Cable length: 1.5m * 2,
Cable section: 2 * 1mm2

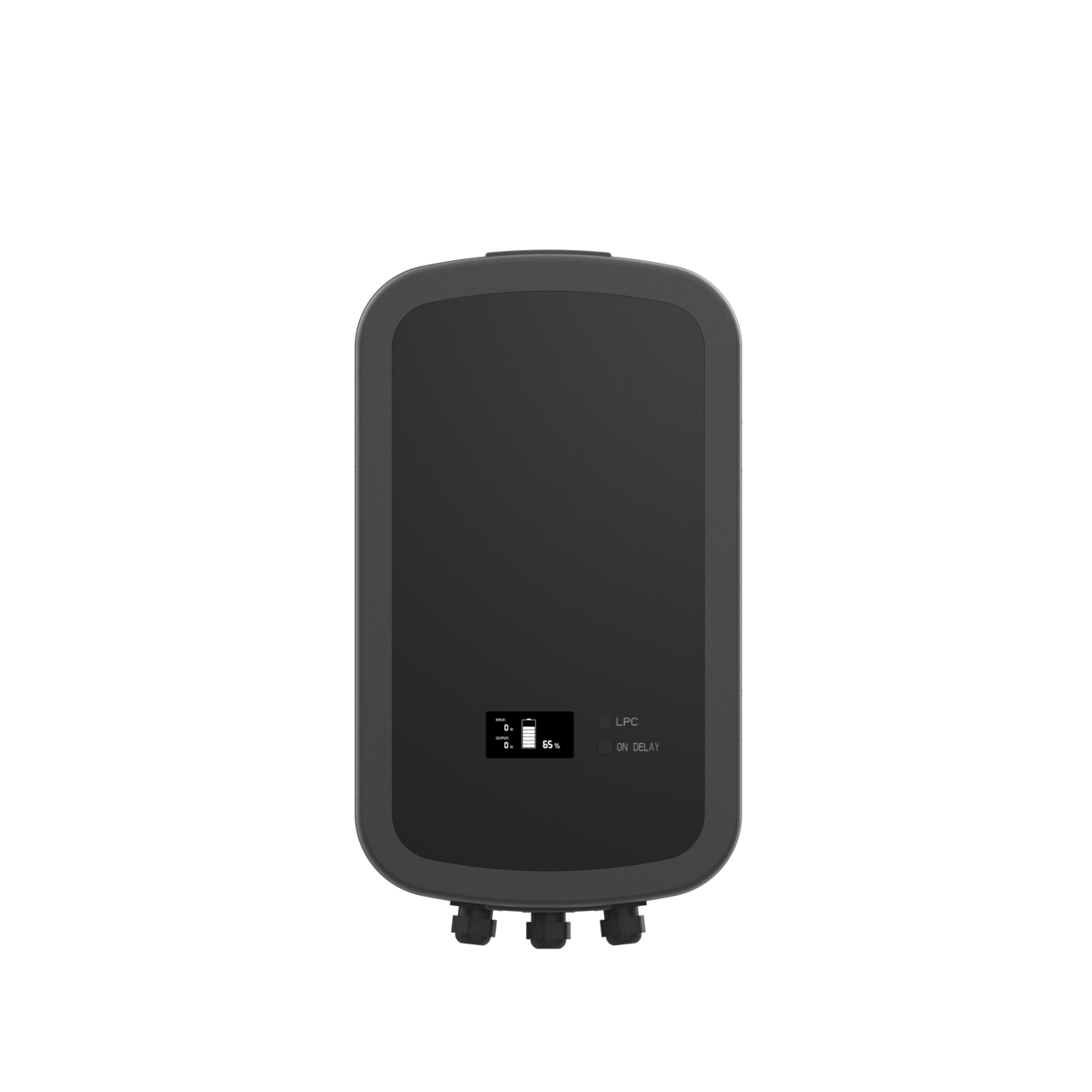

Control Box:
Rated voltage: 22.2V
Max. output current: 25A
Batteries: 9.0Ah
Operating temperature: -20°C to +50°C
Weight: 3.5KG
Dimension: 44.4*24.6*7.1cm
Standby consumption (LPC Mode):
Battery voltage: 22.2V
Maximum output power: 555W

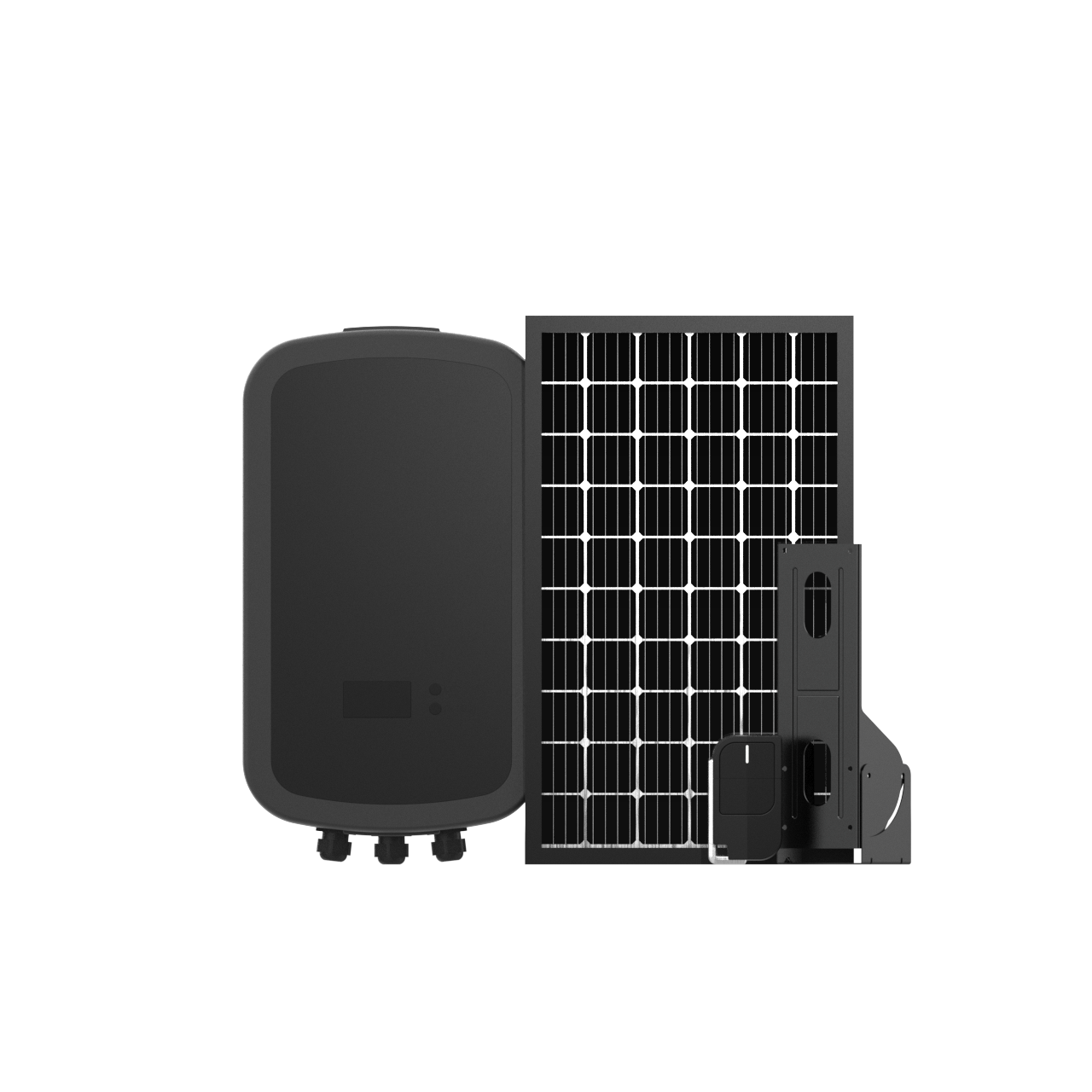

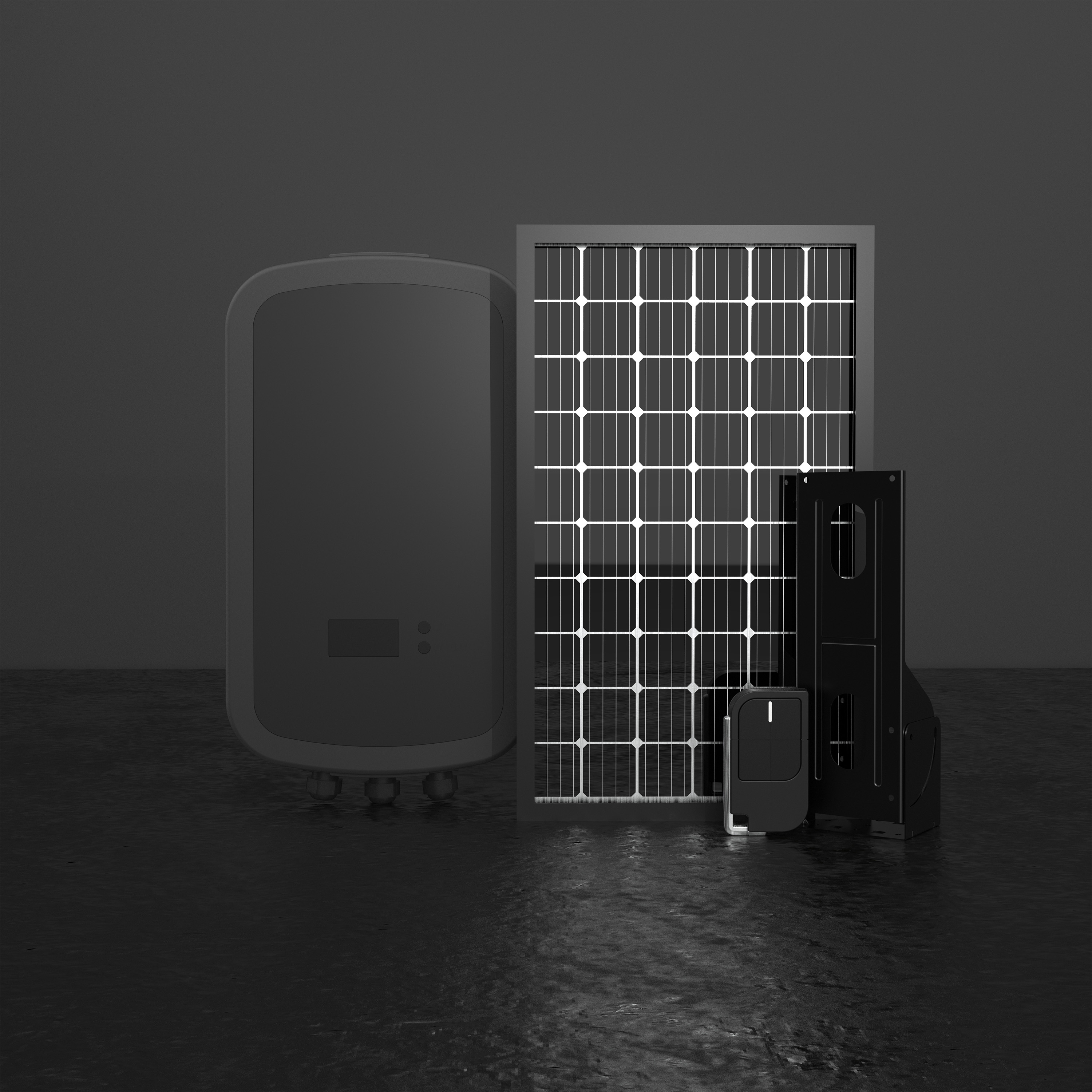

In box:
40W Solar panel *1
Control unit *1

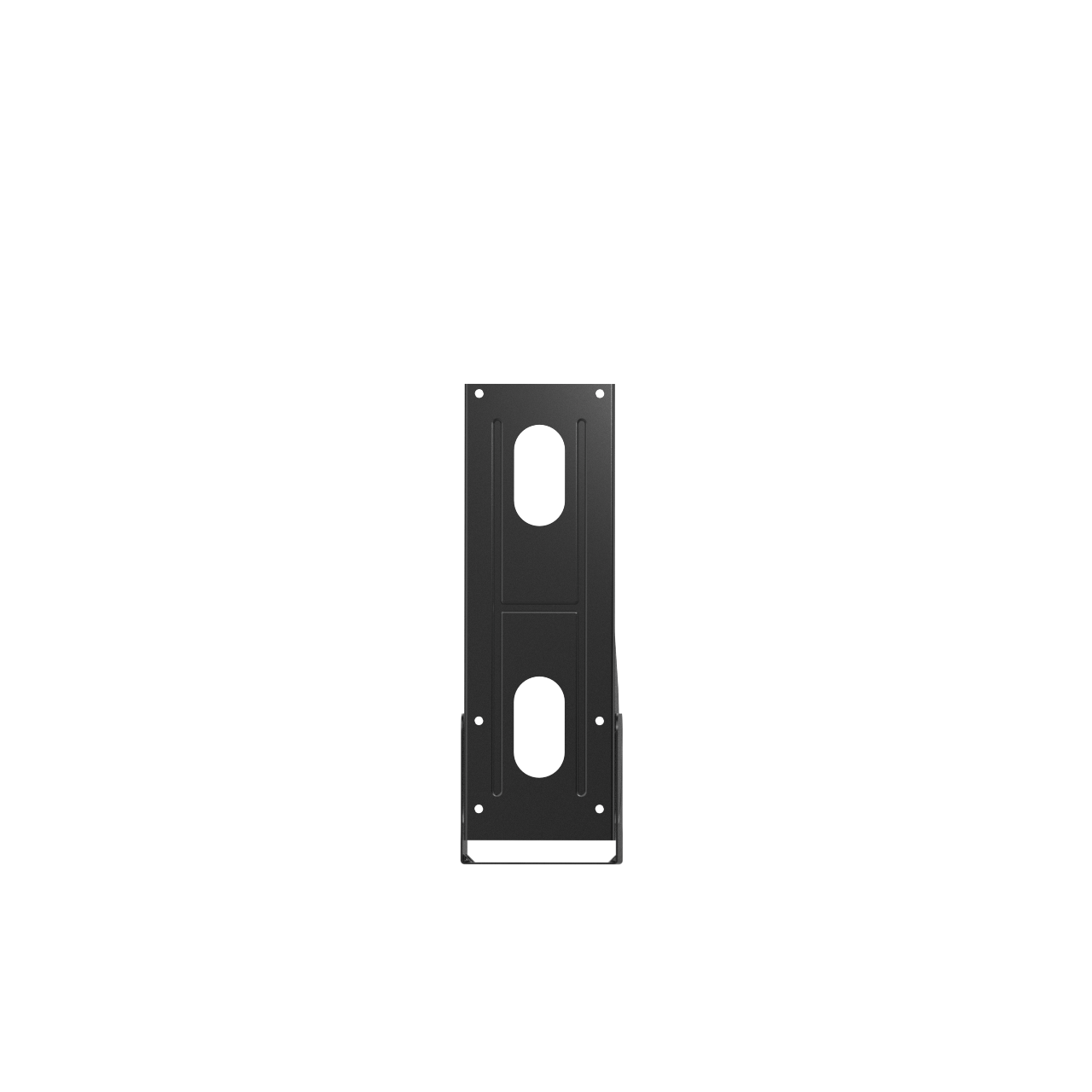

Solar panel bracket *1
9A lithium battery *1
Transmitter (RC07) *1
Connection cable *2
Screw bag *1
User manual *
